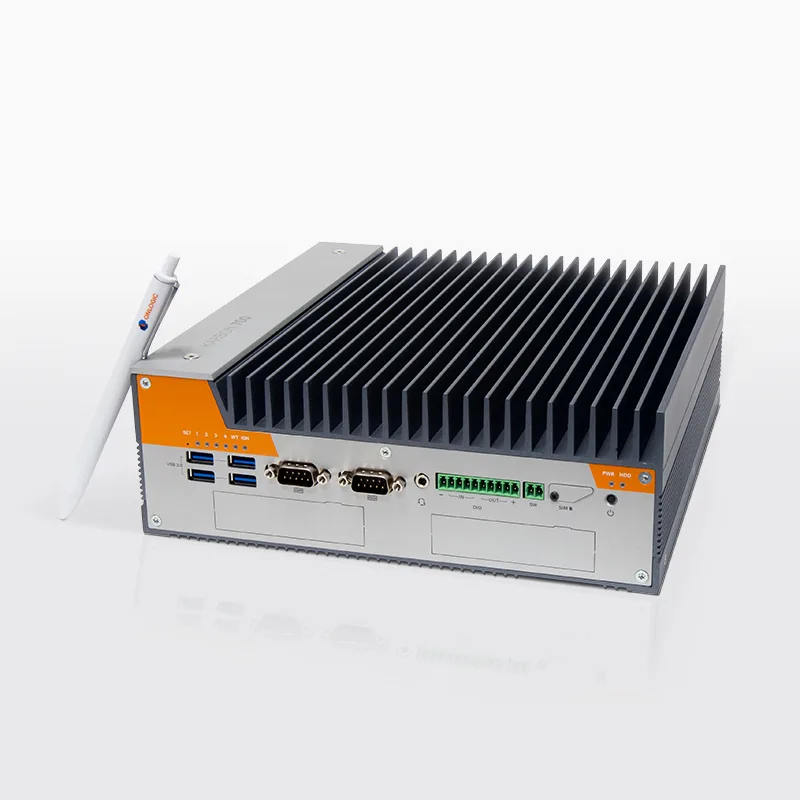

Karbon 700-SEHigh-Performance Rugged Edge Computer
SKU: K700-SE-2This product is no longer available.
Contact us for more information, or enter your email address below and we'll reach out to discuss alternative options.
The Karbon 700-SE-2 High-Performance Rugged Edge Computer brings power, reliability, and connectivity to industrial edge deployments.
- Up to Intel Core i7 or Xeon processing
- 9-36 VDC Power Input
- -40 to 70°C Operating Temperature Range with 35W CPU
Configure & Buy - This product is no longer available.
Contact us for more information, or enter your email address below and we'll reach out to discuss alternative options.
Overview
HIGH-PERFORMANCE RUGGED EDGE COMPUTER
Karbon 700 is a rugged edge computer matching high-performance with functional adaptability for reliable operation in virtually any environment. Blazing fast Hexa-Core Coffee Lake processors and 9th Gen processors (coming soon) push the limit of what's possible with embedded computing.
The C246 chipset enables Xeon processing and ECC memory for rugged server capability at the edge and allows for real-time machine learning, object detection, and behavior recognition while minimizing the dependency on large-scale data centers for data processing and reducing the cost of data transmission over paid data networks.
RUGGED DURABILITY
We built Karbon 700 to meet MIL-STD-810G, UNECE Reg. 10 E-Mark, and EN50155 rolling stock standards* to ensure stable and reliable performance to keep your application up and running even in the most challenging environments.
Our Hardshell Fanless design, medical-grade ESD and interference protections, and solid-state components allow the system to thrive where most computers would fail and support wide input voltage of 9-36VDC and operating temperature range of -40-70°C.
*Configuration dependent.
FLEXIBILITY VIA CUSTOMIZATION
Karbon 700 was designed for flexible and reliable performance at the edge. Standard features include integrated CAN bus and 8-bit DIO, 6 USB 3.1 Gen 1 ports, triple Gb LAN and support for triple independent displays via DisplayPort connectors. Connectivity options include 4G LTE, AC Wi-Fi, and gigabit LAN while support for up to four separate storage drives (two high-speed NVMe drives and two optional hot-swap drives) offers ample storage capacity.
Customize the system to your exact application needs with our ModBay™ expansion technology to deploy additional gigabit LAN, PoE support, and dual mPCIe expansion with external SIM support.
CELLULAR CONNECTIVITY
This system can be configured with an integrated cellular modem, pre-certified to operate on many of the world’s most popular cellular carrier networks using a SIM card. Our 4G/5G capable hardware is ideal for today's mobile, edge computing, and Industrial Internet of Things (IIoT) applications. The wireless connectivity has been tested to operate reliably in challenging Electromagnetic Compatibility (EMC) environments (EN 300 328, EN 301 908-2, EN 301 489-17, EN 301 489-52). Many of our systems also include co-location options allowing you to implement Wi-Fi and Bluetooth, in addition to cellular connectivity, at the same time. To take advantage of cellular connectivity, simply configure your system with one of our available cellular modems and then contact your carrier to activate.
Windows Compatibility: Please note, the Intel Whiskey Lake generation of processors no longer support legacy Windows operating systems, including Windows 7. Contact us for more information.
Specifications
| Hardware Line | Rugged |
| Cooling Type | Fanless |
| Processor Socket | LGA1151 |
| Processor Generation | Coffee Lake |
| System Processor Core Options | 2468 |
| Processor Model | Intel Celeron ; Intel Core ; Intel Pentium ; Intel Xeon |
| Motherboard Chipset | Intel C246 |
| LAN Controller | Intel I210-IT GbEIntel I219-LM GbE |
| Motherboard Expansion Slots | 4 |
| Motherboard Memory Slots | 2 |
| Graphics/GPU | Intel UHD Graphics 610Intel UHD Graphics 630 |
| Memory Type | DDR4 SO-DIMM (non-ECC)/DDR4 SO-DIMM (ECC) |
| Memory Capacity | 64 |
| Memory Clock Speed | 2666 |
| Memory Channels | Dual Channel |
| Number of Displays Supported | 3 |
| Front I/O | 4x USB 3.2 Gen 1 ports 2x RS-232/422/485 COM ports 8-bit Isolated Digital I/O 2-pin Remote Power Switch External Mini-SIM slot 2x 2.5” Hot-Swap Drives 0-15mm (optional) Audio jack (Line-In; Mic-In) *currently not functioning* Power button |
| Rear I/O | 5-Pin Power Input (9 ~ 36 V) 3-pin CAN bus 3x DisplayPort connecters 2x USB 3.2 Gen 1 ports 3x GbE LAN ports (2 PoE optional) External Fan connection 2x ModBay (4 LAN, 4 PoE, etc.) |
| Expansion Options | 1 M.2 2230 E-key1 M.2 2230/60/80 M-key (PCIe x2)1 mPCIe1 mPCIe (shared with mSATA) |
| Storage Options | 1 M.2 2280 (PCIe x4)1 mSATA (shared with mPCIe)2 SATA III 2.5" Drives |
| Motherboard Raid Support | 0/1 |
| System Monitoring | AMT SupportPTT in BIOSTPM (Optional)Watchdog Timer |
| Dimensions | 240 x 82 x 242 mm 9.45 x 3.23 x 9.53 in |
| Case Type (Chassis) | AutomotiveCustomizableExpandableFanlessRuggedized |
| Case Material | AluminumAluminum ExtrusionSteel |
| Case Port Punchouts | 12 Antenna Holes |
| Case Mounting Options | Wall MountWall Mount (with damping bracket) |
| Input Voltage Minimum | 9 |
| Input Voltage Maximum | 36 |
| Input Voltage Type | DC |
| Input Voltage Conversion Note | 9~36 VDC |
| Power Automotive Features | Automotive IntelligenceWide Input |
| Power Input Connector | 5-pin Terminal Block |
| Regulatory Certifications | CEEN 45545-2EN 50121-3-2EN 55032EN 55035EN 62368-1FCC 47 CFR Part 15 Subpart BIEC 60068-2-27IEC 60068-2-64MIL-STD-810GMIL-STD-810G TestRCMREACHTAA ComplianceUKCAUL/ETL Listed configurations availableWEEE |
| Temperature (Operating) Notes | -40 ~ 40°C (w/ 80W CPU) ; -40 ~ 50°C (w/ 65W CPU) ; -40 ~ 70°C (w/ 35W CPU) |
| Suitable Environments | AutomotiveColdDustExtreme EnvironmentHeatIndustrialVibration & ShockWide Power |
| Humidity (Non-Condensing Operating Minimum) | 10 |
| Humidity (Non-Condensing Operating Maximum) | 95 |
| Shock Tolerance (Non-operating) | Tested according to IEC 60068-2-27 50g, 11 ms, half-sine, 3 shocks in both positive and negative directions, 3 axes, 18 total shocks, non-operating 30g, 18ms, half-sine, 3 shocks in both positive and negative directions, 3 axes, 18 total shocks, non-opera |
| Shock Tolerance (Operating) | Tested according to MIL-STD-810G, Method 516.6 for Ground Level Equipment 40g, 11ms, sawtooth, 3 pulses positive and negative per axis, 3-axis, operating |
| Vibration Tolerance (Non-operating) | Tested according to IEC 60068-2-64, Category 3, Table A.6 3 axes, except hour/axes only and increase f2 from 150 Hz to 500 Hz, non-operating |
| Vibration Tolerance (Operating) | Tested according to MIL-STD-810G, Method 514.6, Category 4, Common Carrier over US Highways 1 hour per axis, 3 axes |
| Manufacturer Component Warranty | 2 Year Limited Warranty |
| Additional Features | 4G LTECAN BusDIOIgnition Sensing |
