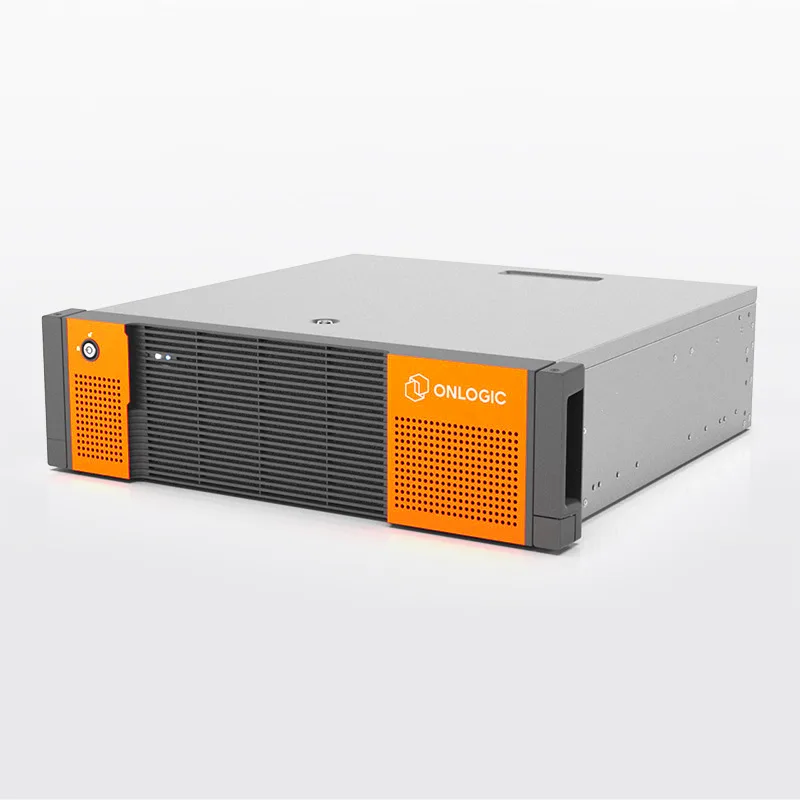

The Axial AX301 is a powerful, high-density edge server equipped with 5th Gen Intel® Xeon® Scalable processing, up to two dual-slot PCIe adapters, and a huge range of storage options.
Single or dual CPU options
Wide range of expansion capabilities
Highly-configurable storage
OnLogic offers Free Economy Shipping within the Netherlands, Germany and Belgium on all online orders of €200 and above. If your purchase qualifies for Free Economy Shipping, you will see this option available at the time of checkout.
For American customers, we have a website and store located in the United States at www.onlogic.com/. If there is something you don't see on the American site, please contact info@onlogic.uk
The OnLogic AX301 is a high-performance edge server designed to handle demanding workloads. Equipped with a single 5th Gen Intel® Xeon® Scalable processor, the AX301 offers exceptional processing power and flexibility. With support for up to two dual-slot PCIe adapters and an additional network adapter, the AX301 can accommodate a wide range of expansion cards, including high-performance GPUs for AI and machine learning applications, or high-speed network interfaces for effective data handling at the edge.
The AX301 boasts a compact and rugged form factor, making it ideal for deployment in a wide range of edge environments. Its versatile installation options include rack-mount, wall-mount, and tower stand configurations, allowing you to tailor system orientation to your specific needs. The front drive bay can accommodate up to eight 2.5" SATA SSDs, providing ample storage capacity for your business critical data.
The AX301's onboard I/O empowers you to connect the devices, sensors and peripherals you need, including multiple 10GbE LAN ports for high-speed network connectivity. The integrated Intel X710-AT2 controller ensures reliable and efficient data transfer. And to help protect whatever you're connecting, the AX301 supports a variety of security features, such as TPM 2.0, Secure Boot, and intrusion detection, safeguarding your critical data and applications.
| Hardware Line | Server |
| Cooling Type | Actively Cooled |
| Processor Socket | LGA 4677 |
| Processor Generation | 5th Generation |
| Processor Family | Intel Xeon |
| LAN Controller | 1 Intel X710 Controller (2 x 10GbE ports) |
| Motherboard Expansion Slots | 7 |
| Motherboard Form Factor | ATX |
| Motherboard Memory Slots | 16 |
| Memory Type | DDR5 RDIMM (non-ECC or ECC) |
| Memory Capacity | 2000 |
| Memory Channels | Multi Channel |
| Front I/O | 2x USB 3.2 Gen 1 Type A |
| Onboard I/O | 2x USB 2.0 Type A 2x 10GbE Intel X710-AT2 1x GbE Dedicated Management (BMC/IPMI) 1x VGA(BMC Video Output) |
| Storage Options | 1 Rear SATA 2.5” Hot Swap4 Front Hotswap NVMe8 Front Hotswap SATA |
| Motherboard Raid Support | 5100/1 |
| System Monitoring | CPU Voltage MonitoringIPMI v2.0RedFishSmart Fan Control |
| PCIe Count | 7 |
| Dimensions | 438 x 132 x 421.2mm (17.3 x 5.2 x 16.6”) without Security Bezel 482.6 x 132 x 455mm (19.0 x 5.2 x 17.9”) with Security Bezel & Handles 132 x 448.2 x 553.6mm (5.2 x 17.6 x 21.8”) with Tower Stand, Security Bezel and Rear Cable Security Bezel |
| Case Type (Chassis) | Rackmount |
| Case Material | Steel |
| Case Mounting Options | Rackmount |
| Input Voltage Minimum | 100 |
| Input Voltage Maximum | 240 |
| Input Voltage Type | AC |
| Input Power Minimum | 1000 |
| Input Power Maximum | 2400 |
| Regulatory Certifications | CEcULTAA ComplianceContact us for more information |
| Temperature (Operating Minimum) | 5 |
| Temperature (Operating Maximum) | 40 |
| Manufacturer Expected Lifecycle | 5 |
| Additional Features | GPU ExpansionSecure BootRemote Management BMC |
