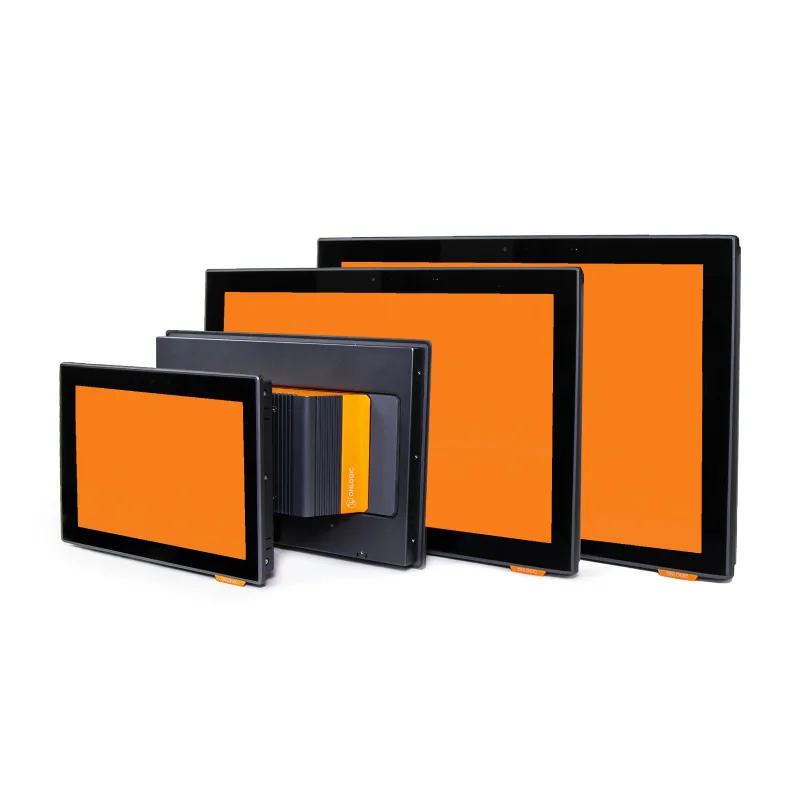

Tacton TC401Intel 12th Gen All-in-one Panel PC
SKU: TC401RThe Tacton TC401 panel PC is an easy to install touchscreen computer purpose-built for reliability in tough environments. Choose the display size, type, and brightness, and match it with the compute, I/O, and functionality your unique project requires.
- Intel 12th Gen processing
- Standard & high brightness, optical bonding, IP66/69K
- Up to 6x LAN, 4x COM, or 8x USB w/available port locking
Configure & Buy
Need Help? Talk to a Solution Specialist -
OnLogic offers Free Economy Shipping within the United States on all online orders of $250 and above. If your purchase qualifies for Free Economy Shipping, you will see this option available at the time of checkout.
We only offer Free Economy Shipping to orders shipped within the lower 48 states of the US (excludes Hawaii and Alaska). For Canadian and International customers, we have an Economy Shipping option available via USPS on certain products. For smaller components, this can help reduce overall shipping costs.
For European customers, we have a website and store located in the EU at www.onlogic.com/eu/. If there is something you don't see on the European site, please contact info@onlogic.com
Overview
EVERYTHING YOU NEED, NOTHING YOU DON'T
Every automation, data visualization, HMI, kiosk, or transportation deployment is unique, so you need a panel PC solution that can be easily customized. But you also don't want to be locked in to paying for features you don't need. The TC401 provides powerful computing in a modular platform designed to scale with you.
Modular compute & I/O configurations
Support for discrete I/O via integrated MCU
Wireless/cellular connectivity
ModBay expansion capabilities
Just need a touchscreen display? Check out the TN101
DISPLAY OPTIONS FOR EVERY APPLICATION
From outdoor installations in bright sunlight, to food production environments that require equipment to be regularly sprayed clean, the Tacton TC401 has a display option to suit any deployment. With its modular design, you can mix and match the compute capabilities with the screen size, brightness, and touch interface type you require.
High resolution
Standard or high brightness
Wide viewing angles
Integrated proximity sensor
Optional HD camera
Optically bonded PCAP screens
MAXIMUM UPTIME, MINIMAL FRUSTRATION
The Tacton TC401 is engineered to thrive in challenging food production, manufacturing, factory automation, in-vehicle, and energy management environments so you can focus on your operations, not the reliability of your panel PCs.
Wide operating temp range
Industrial or rugged power input options
Quick install, toolless ruggedized locking mounts
Available ignition sensing
IP66/IP69K* front bezel
Shock, vibration, UV, and 7H scratch resistant
*Only PCAP displays without optional camera are rated for IP69K with proper installation.
Specifications
| Hardware Line | Panel PC |
| Cooling Type | Fanless |
| Processor | Intel 12th Gen Alder Lake-NIntel N97Intel Atom x7425E (w/ Intel TSN; TCC support)Intel i3-N305 |
| System Processor Core Options | 48 |
| Processor Clock Speed Notes | Up to 3.8GHz (processor dependent) |
| Motherboard Memory Slots | 1 |
| Graphics/GPU | Intel® UHD Graphics for 12th Gen Intel® Processors up to 32EU |
| Memory Type | DDR5 |
| Memory Capacity | 16 |
| Memory Clock Speed | 4800 |
| Number of Displays Supported | 2 |
| Display Mounting Options | Panel MountVESA Mount |
| Rear I/O | 4-Pin Terminal Block Power Input (12 ~ 24V DC) with Industrial Protections or 5-Pin Terminal Block Power Input (12 ~ 48V DC) Rugged Protections and Automotive Ignition Power Sensing 2x USB 2.0 Type-A 2x USB 3.2 Gen 2 (10Gbps) Type-A 1x 12-pin Terminal Block 8-bit DIO w/ Remote Power Switch & Ignition Sensing 1x RS-232/422/485 DB9 COM port 1x RS-232/422/485 COM or CAN port (Optional) 2x 2.5Gbe LAN w/ I226-IT controller and Intel TSN support 1x Full size DisplayPort 1.4a 1x Intel HD Audio Out + Mic-In 1x OnLogic ModBay for I/O Expansion including: 4x LAN 3x M12 LAN 2x COM 4x USB 3.0 Type-A |
| Expansion Options | 1 M.2 2280/2260 M-key (PCIe Gen 3 x1/ SATA III)3FF-Sim slot (Mapped to the B-Key)1 M.2 2280/3042/3052 B-Key (PCIe Gen 3 x1, USB 3.2; USB 2.0) |
| Dimensions | 12.1”: 309.0 x 225.4 x 94 mm (W x H x D) / 12.17 x 8.87 x 3.70 in (W x H x D) 15.6” : 394.8 x 259.4 x 96 mm (W x H x D) / 15.54 x 10.21 x 3.78 in (W x H x D) 21.5” : 528.2 x 335.3 x 99 mm (W x H x D) / 20.80 x 13.20 x 3.90 in (W x H x D) Weight System with no panel: ~1.20 kg / 2.65 lbs System with 12.1” panel: ~3.6 kg / 8.0 lbs System with 15.6” panel: ~5.0 kg / 11.1 lbs System with 21.5” panel: ~ 8.2 kg / 18 lbs" |
| Case Material | AluminumSteel |
| Case Mounting Options | VESA Mount |
| Input Voltage Conversion Note | 12~24VDC or 12~48VDC |
| Regulatory Certifications | 800xAUL/IEC/EN 62368-1 (UL E490677) NRTL + CB UL/IEC/EN 60950-1(UL E490677) NRTL + CBCISPR 32/35 & EN 55032/55035WEEE Directive (2012/19/EU)REACH & CMRT CompliantImmunity per ISO 7637-2 & ISO 16750-2CAN ICES-003(A) / NMB-003(A) (Class A)EN 50121-3-2EN 62311:2020ETSI EN 301 489 (parts 1, 17, 52)ETSI EN 301 893ETSI EN 301 908ETSI EN 300 328FCC 47 CFR Part 15 (Class A)IEC 60601-1-2 (EMC testing only)IEC 60945 Ed. 4REACHRoHS 3 (2015/863/EU)TAA ComplianceIEC 62638 DNV-CG-0339 |
| Temperature (Operating) Notes | System Operating Temperature: -20~70° C (panel dependent). Please refer to Appendix H in Manual |
| Suitable Environments | Extreme EnvironmentVibration & Shock |
| Humidity (Non-Condensing Operating Maximum) | 90 |
| Shock Tolerance (Operating) | Tested according to IEC 60068-2-27 and MIL-STD-810G (516.6) |
| Vibration Tolerance (Operating) | Tested according to IEC 60068-2-64 and MIL-STD-810G (514.6) |
| Manufacturer Component Warranty | 2 Year Warranty |
| Additional Features | User-Programmable OnLogic Microcontroller (MCU)Automotive Ignition Power SensingOnboard TPM 2.0 module |
| Compatible Software | AWS IoT GreengrassIgnitionRed Hat |
| Notes | Panel Size: 12.1” 1280x800 (WXGA) 16:10 15.6” 1920x1080 (Full HD) 16:9 21.5” 1920x1080 (Full HD) 16:9 Standard Brightness, High Brightness, Resistive & PCAP touch options View angle 160 H°/ 160 V° (min) Panel Display Integrated Peripherals: 1x Camera & Mic (optional): 2MP CMOS sensor, supports 1080p and 720p @30fps 1x Proximity Sensor Wattage (processor and display dependent): 12.1”: 40.1W nominal, 77.2W max (at 24VDC) 15.6”: 43.2W nominal, 80.0W max (at 24VDC) 21.5”: 41.4W nominal, 78.8W max (at 24VDC) (nominal = PCAP Std. Brightness with N97 processor and no peripherals) Features: User-Programmable OnLogic Microcontroller (MCU) Automotive Ignition Power Sensing Onboard TPM 2.0 module (Infineon SLB9672) PCAP - Multi Touch Feature Support Environmental: Storage Temperature: -10~85° C Front Panel IP Rating: IP66/IP69K depending on model. Only PCAP displays without optional camera are rated for IP69K with proper installation. See manual for more information. Back IP Rating: IP50 Certification Markings: FCC, CE, UKCA, CB, cULus, VCCI, RCM, RoHS 3, WEEE Coming soon: BSMI, BIS, NOM equivalency Available Countries (incl Wifi/BT): Americas: Canada, United States, Mexico* Asia: China, Hong Kong, Japan Australasia: Australia & New Zealand Europe: Austria, Belgium, Bulgaria, Croatia, Czech Republic, Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Liechtenstein, Luxembourg, Malta, Norway, The Netherlands, United Kingdom, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden Coming soon: Taiwan, India, Saudi, UAE Colocation approved countries ( Wifi/BT + LTE ): USA, CA, EU, UK, AUS/NZ Other countries available, please call. *: Limitations apply Number of Displays Supported: 1x integrated Panel with optional size (12.1”, 15.6” and 21.5”), 1x DisplayPort out (Full-size, DP 1.4a) Notes: Red Hat Enterprise Linux (RHEL) does not support the dual COM ModBay expansion. When using RHEL the TC401 supports a maximum of 2x COM. |
