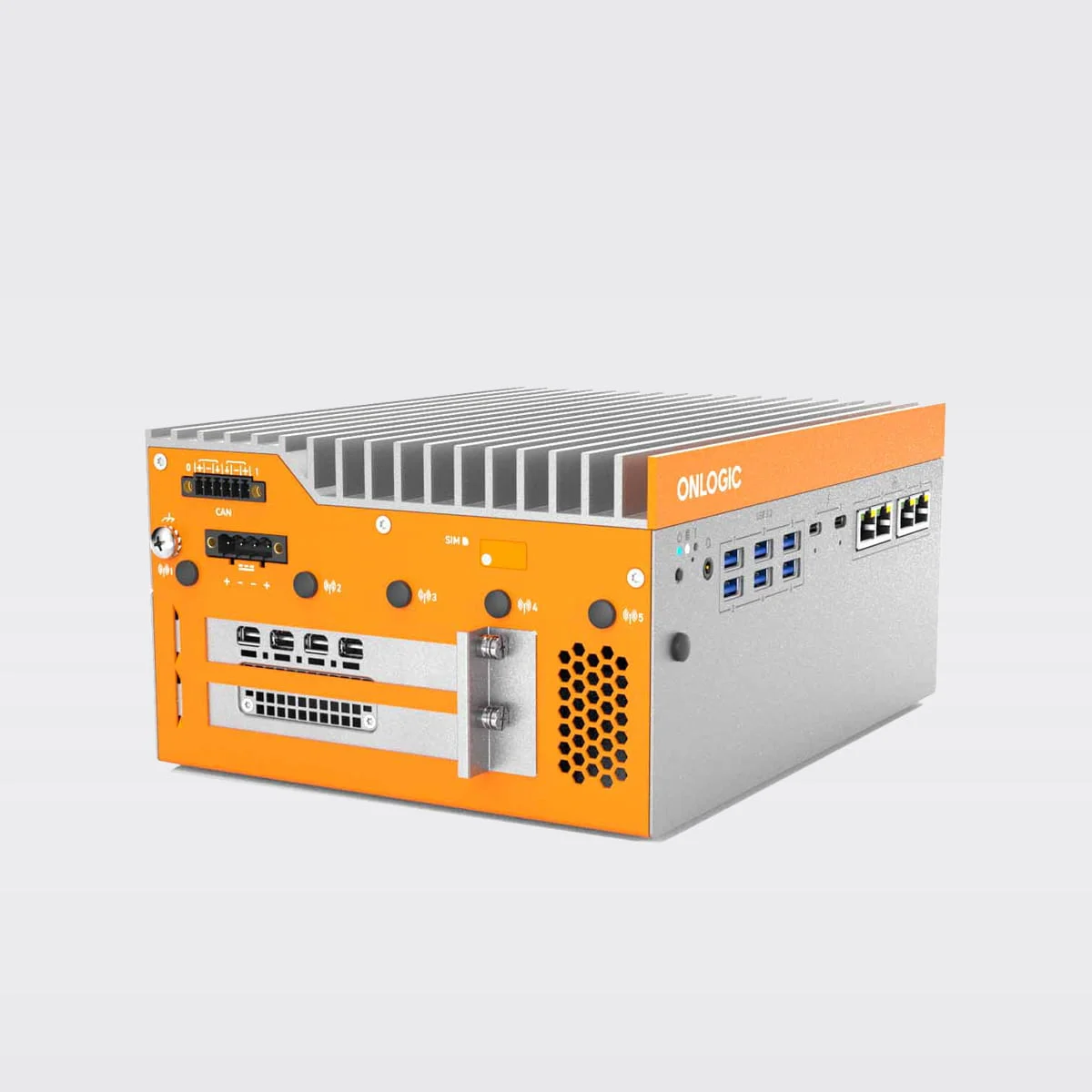

Helix 524-PLCExpandable SoftPLC Edge Controller with Available Hilscher netX Card
SKU: HX524-PLCThe Helix 524-PLC is a SoftPLC edge controller pre-configured with CODESYS to deliver deterministic machine control. Featuring an available Hilscher netX expansion card, it offloads multi-protocol fieldbus translation from the main CPU. Powered by Intel® Core™ Ultra processing, the HX524-PLC provides an expandable platform for control logic and edge AI applications on the factory floor.
- Pre-configured and optimized for CODESYS
- 4x 2.5 GbE LAN, 4x RS232/422/485 COM, 8x Native Digital In/Out
- Integrated Hilscher netX card for multi-protocol real time determinism
Configure & Buy
Need Help? Talk to a Solution Specialist -
OnLogic offers Free Economy Shipping within the United States on all online orders of $250 and above. If your purchase qualifies for Free Economy Shipping, you will see this option available at the time of checkout.
We only offer Free Economy Shipping to orders shipped within the lower 48 states of the US (excludes Hawaii and Alaska). For Canadian and International customers, we have an Economy Shipping option available via USPS on certain products. For smaller components, this can help reduce overall shipping costs.
For European customers, we have a website and store located in the EU at www.onlogic.com/eu/. If there is something you don't see on the European site, please contact info@onlogic.com
Overview
INTEL CORE ULTRA PERFORMANCE AND DETERMINISTIC CONTROL
The Helix 524-PLC combines Intel Core Ultra processing with a pre-validated software stack from CODESYS for real-time control. The system handles machine control and dual-channel safety functions purely through software using standard onboard interfaces. Equipped with up to 96 GB of DDR5 memory and PCIe Gen4 M.2 storage, the HX524-PLC supports parallel execution of control logic, machine vision containers, and edge analytics on a single hardware platform. Selected processors also support Intel vPro and Intel Active Management Technology (Intel AMT) for remote out-of-band management.
HARDWARE-ACCERATED FIELDBUS TRANSLATION
To handle high-density industrial communication without compromising system performance, the Helix 524-PLC is available with a range of GPUs and accelerators, including a dedicated Hilscher netX PCIe expansion card. This dedicated chip takes over the heavy lifting of translating factory network protocols including PROFINET, EtherNet/IP, EtherCAT, Modbus TCP. By handling protocol translation on dedicated hardware, the system prevents host CPU slowdowns, isolates network traffic, and maintains sub 1ms jitter for critical real-time tasks while leaving room for additional expansion option
ENGINEERED FOR INDUSTRIAL ENVIRONMENTS
The Helix 524-PLC features a fanless aluminum and steel enclosure measuring 106 mm x 177 mm x 225 mm and features a 0 to 50°C operating temperature range. Built for complex operational technology environments, the front panel features 4x 2.5 GbE LAN ports powered by Intel I226 controllers, 6x USB 3.2 Gen 2 ports, and 2x Thunderbolt 4 USB-C ports. Bottom panel connectors provide 4x COM (RS-232/422/485) via dual-COM connectors and 2x DisplayPort 2.1 outputs, while the top panel houses an integrated DIO module, a terminal block power input (19 to 24 VDC), and a 3FF SIM slot for wireless connectivity. Mounting options include DIN, Wall, VESA, and VESA.
Specifications
| Hardware Line | Industrial (Fanless) |
| Cooling Type | Hybrid Fanless/Actively Cooled |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Intel® Core™ Ultra Processor (Series 1) [Meteor Lake] |
| Processor | Intel® Core™ Ultra 5 125HIntel® Core™ Ultra 5 135HIntel® Core™ Ultra 7 165H |
| Processor Family | Intel Core Ultra Series 1 & 2 (Meteor and Arrow Lake) |
| Processor Features | AMT SupportEmbedded LifecycleIntel vPro® |
| Processor TDP | 28 |
| LAN Controller | Intel® I226LMIntel® I226V |
| Graphics/GPU | Intel ARC GraphicsNVIDIA A4000 ADA SFFNVIDIA A2000 ADA SFF |
| Memory Type | DDR5 |
| Memory Capacity | 96 |
| Memory Clock Speed | 5600 |
| Memory Channels | Dual Channel |
| Number of Displays Supported | 4 |
| Display Mounting Options | VESA Mount |
| Front I/O | 1x Power Button 1x Factory Reset Switch 1x 3.5mm Audio Jack 6x USB 3.2 Gen 2 (Type A) 2x Thunderbolt 4, USB Type C (40 Gb/s) 4x 2.5Gb LAN |
| Rear I/O | 4x COM (RS-232/422/485) Optional CAN Optional DIO 2x Display Ports |
| Onboard I/O | 1x 4 pin Terminal Block Power 1x 3ff SIM Slot (Mapped to M.2 B-Key) 6x Antenna Mounting Holes 1x Grounding Lug 1x Remote Switch 2x DisplayPort 2.1 UHBR20 2x Dual COM (RS-232, RS-485, RS-422) 1x Fan Hat Connector |
| Expansion Options | 3FF-Sim slot (Mapped to the B-Key)1 M.2 2280 M-key (PCIe Gen 4x4)1x M.2 B-Key (PCIe Gen4 x2/USB 2.0, PCIe Gen4 x1/USB3.2 Gen 1) 1x PCIe Gen5 x16 mechanical/x8 electrical FHHL |
| Storage Options | 1 M.2 2242/60 M-key (PCIe x4) for NVMe SSD1 M.2 2242/60/80 B-key |
| System Monitoring | AMT Support |
| Connectivity | 4G LTEBluetoothWi-Fi |
| Expansion Mobile Carriers | AT&TVerizon |
| PCIe Count | 1 |
| PCIe Count Note | 1x 16 Gen 5; x8 Electrical |
| Dimensions | 106mm x 177mm x 225mm |
| Weight | 3.77 |
| Case Material | Aluminum ExtrusionSteel |
| Input Voltage Minimum | 19 |
| Input Voltage Maximum | 24 |
| Input Voltage Type | DC |
| Power Input Connector | 4-pin Terminal Block |
| Regulatory Certifications | CISPR 32/35 & EN 55032/55035EN 55032EN 60601-1-2 4th ed.EN 60950-1EN 60945 Ed. 4EN 62368-1TAA ComplianceUKCAWEEE |
| Temperature (Operating Maximum) | 50 |
| Suitable Environments | DustGeneral OfficeIndustrial |
| Humidity (Non-Condensing Operating Minimum) | 5 |
| Humidity (Non-Condensing Operating Maximum) | 95 |
| Additional Features | Onboard TPM 2.0 module4G LTECAN BusDIOGPU ExpansionRemote Management: Intel vProSecure BootHailo AcceleratorAI Inference Accelerator |
| Compatible Software | Red HatUbuntu |
| Included Accessories | 1x 4 pin Terminal Block Mating Connector |
| Notes | LAN Controllers: 4x I226-V (Core Ultra 5 125H/225H) 3x I226-V, 1x I226-LM (Core Ultra 7 165H/265H/135H) GPU: NVIDIA A4000 ADA SFF Certification Markings: CE, cULus, FCC, UKCA, VCCI, RCM, RoHS, WEEE Coming soon: BIS, KCC Available Countries (incl Wi-Fi/BT): Americas: United States, Canada Asia: China, Hong Kong, Japan, Oceania: Australia, New Zealand Europe: Austria, Belgium, Bulgaria, Croatia, Czech Republic, Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Liechtenstein, Luxembourg, Malta, Norway, The Netherlands, United Kingdom, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden Coming soon: Saudi Arabia, UAE, India, South Korea* Colocation approved countries ( Wi-Fi/BT + LTE ): USA, CA, EU, UK, AUS/NZ Available Countries (no Wi-Fi/BT): Americas: Mexico, Brazil Asia: Singapore Other countries available, please call. |
